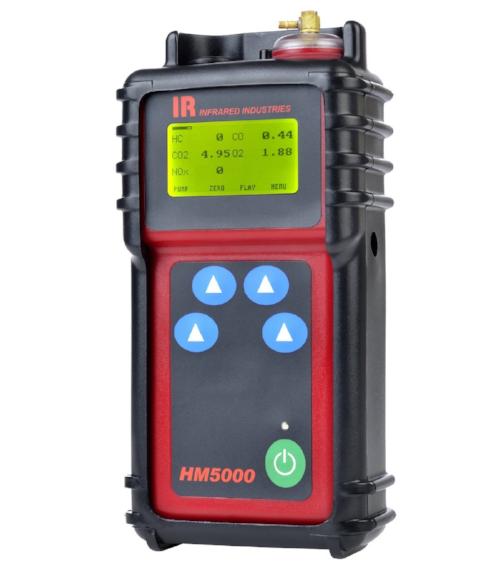

Infrared Industries HM5000 Handheld Exhaust Gas Analyzer (Best for Motorcycles)

$2,395.00

SKU: HM5000

HM5000 - Handheld Gas Analyzer, Great for Motorcycle Applications.  INCLUDES:  internal rechargeable battery, built in data recorder, oxygen sensor, sample hose, mini-probe handle, water separator and purge pump, operators manual

OPTIONAL ACCESSORIES:
NOx Sensor, Tach Pickup Cable, Serial Cable
Motorcycle Fittings:  2, 4, and 6 cylinder manifolds
• 6mm fitting for Honda, Yamaha or Kawasaki
• 10mm fitting for Ducati
IRI Display PC Software for remote control and display of the analyzer from a PC and record and playback of data
12V DC Cable
Analog outputs
Portable Printer
1yr wtty, Extended warranty available

The high performance edge you’ve been looking for is finally here! Compact,
fast responding, and accurate, the HM5000 helps you professionally tune in
the shop or on the road. It also lets you perform road testing on the go. Simply connect the HM5000 to your vehicle’s exhaust while you drive and in less than a second you’ll see the exhaust gas composition. Determine the exact amount of Hydrocarbons (HC), Carbon Monoxide (CO),Carbon Dioxide (CO2), Oxygen (O2), and Oxides of Nitrogen (NOx) your vehicle is emitting. Get instant readings on up to five gases, plus Air to Fuel (AFR) Ratio, Grams Per Mile (GPM) and Lambda to help you tune that ever-so-tricky carburetor or injection system. See all the data on a road test, or when taking laps around the track, and replay the results without any additional equipment. Or, your can connect the HM5000 to your PC and download and store your test drive data for historical analysis. This potent combination of gas measurement and tach reading is all you need to tune or troubleshoot your engine at various RPM’s.

General Specifications
Display 6.5" LCD menu-driven display; multi-language (English, Spanish, Arabic)
Displays HC, CO, CO2, O2, NOx, AFR, λ, kRPM, and GPM user-selectable
Gases measured HC, CO, CO2 - Non-dispersive Infrared (NDIR)
O2, NOX - Electrochemical Cell
Particle filter Coalescent media, field replaceable
Water filter True positive screen, field replaceable; continous water separation
Certifications BAR-90 certified
Meets BAR-97 performance specifications
Canada's AirCare Certified
Meets or exceeds OIML Class I Gas standards
Warm-up time Five minutes or less
Response time Approximately 2 seconds
AC power 110V AC - 220V AC ± 10%, 50 Hz - 60 Hz
0.5A, 0.3A max
AC voltage range 90V - 240V
DC power 10V DC - 16V DC
1.5A nominal, 3.5A max
Weight 9 lbs. (4.1 kg)
Size (W x L x D) 13.2" x 10.8" x 6.5" (33.5 cm x 27.4 cm x 16.5 cm)
Temperature 35.6° F to 113° F (2° C to 45° C) Operating
-40° F to 167° F (-40° C to 75° C) Storage
Interface RS232 with custom protocol
Gases and Ranges (within 1% full-scale accuracy)
Hydrocarbons (HC) (n-Hexane) 0 - 10,000 ppm
Carbon Monoxide (CO) 0 - 10%
Carbon Dioxide (CO2) 0 - 20%
Oxygen (O2) 0 - 25%
Oxides of Nitrogen (NOx) 1 - 5,000 ppm
Tachometer (TACH) 0 - 30,000 rpm (displayed as krpm = 1,000 rpm)
Air to Fuel Ratio (AFR) 0 - 50%
Lambda (λ) 0 - 5
Grams per Mile (GPM)
Grams per Kilometer (GPK)
Optional Motorcycle Fittings 2, 4, and 6 cylinder manifolds
6 mm fitting for Honda, Yamaha, or Kawasaki
10 mm fitting for Ducati
Optional Software Dynamic Link Library (DLL) for custom software development
Menus in plain English
Easy-to-use, menu-driven, Windows-based IRI Display Software
Accessories Included Optional
Oxygen sensor x
Flexible probe x
25' sampling hose x
AC power adapter x
Operator's Manual x
Quick Start Guide x
Internal/external printer x
NOx sensor x
Inductive tachometer pick-up x
12V DC cable x
2-shelf rolling cart x
One year standard warranty x
Extended warranty x
