MS6050R23-EURO KIT MemoBike6050 Diagnostic Scan Tool Kit for BMW, Ducati & Triumph with Unlimited Software Updates (Phone to place order & add Cables)

*PHONE US FOR SPECIAL PRICING - ON SALE NOW FOR PHONE ORDERS!* 800-222-6199

The MEMOBIKE6050 Scan Tool MS6050R23-EURO KIT Universal Diagnostic Scan Tool with Unlimited Software Updates (endothermic applications only).

Includes 4 cables for BMW, Ducati & Triumph:

*** You may need to purchase additional OEM-Connector Cables. Phone us for assistance ***

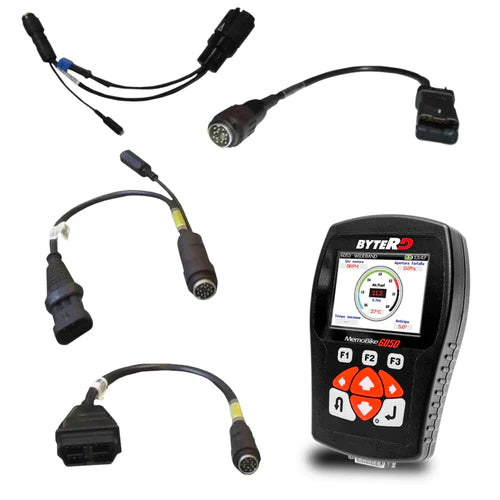

The MemoBike unlimited software now includes over 100 manufacturers and over 7000 models of motorcycles, scooters, and ATVs. A shock-absorbing case is included. The scanner comes in a carrying case with the Master Cable, Battery Clamp cable, Universal, and USB cables, Power Adaptor and Quick Start Guide

The scan tool covers the following functions: Ignition, Injection, ABS, Immobilizer/Anti-Theft, Service Resets, Dashboard, Body Computer, Radio/Entertainment System, and RDC/Tire Pressure Monitoring. It is much more than just a code reader!

The ByteRD Diagnostic Scan Tool allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking and configuring the immobilizer/alarm, making injection adjustments (CO Trimmer), adjusting the throttle valve position sensor (TPS), resetting auto adaptive parameters, and making idle adjustments. The tool displays ECU data that reads stored faults (history) or live data (RPM, battery voltage, throttle angle).

MemoBike 6050 - CABLE LISTING

 TO ORDER ADDITIONAL CABLES OR FOR ANY ADDITIONAL QUESTIONS: CALL US AT 800-222-6199

MemoBike 6050 SCAN TOOL BROCHURE

MemoBike 6050 - MULTI BRANDS KITS

MemoBike 6050 - COVERED BRANDS LISTING

MemoBike 6050 - VEHICLE APPLICATION LIST

Features:

• Software covers over 100 major manufacturers’ diagnostic functions. Activated via the internet, and the upgrades are done electronically.

• Covers Injection, Ignition, ABS, Immobilizer/Anti-Theft System, Body Computer, etc.

• The tool also allows the technician to perform factory service procedures such as:

• Reading and Re-setting the service light

• Encoding keys

• Unlocking the immobilizer and configuring the immobilizer/alarm

• Making injection adjustments (CO Trimmer)

• Adjusting the throttle valve position sensor (TPS)

• Re-setting auto-adaptive parameters

• Making idle adjustments

• The tool displays live data and ECU data reads stored faults (history) or live data (RPM, battery voltage, throttle angle, includes data logger for intermittent fault detection, etc.)

Note: Not all features are available with all brands of motorcycles/ATVs. OEM-style connector cables are required and sold separately.

The MS6050 Scan Tool is delivered with a full 12-month warranty on parts and labor that automatically starts on the date of shipment of the unit.

CPU = Cortex M3 (96 Mhz) Bluetooth Ready

Internal Memory = 32 MB RAM memory, 4GB Flash memory

Diagnostic Interface = Db26 ISO22900-1 (MVCI), Internal Multiplexer

USB Interface = Mass Storage connection for software update

Supply = Internal with LiPoly rechargeable battery, External, 5V with cable, From vehicle, 8-16V

Display = Led LCD 3.5 “ full color high-definition 320x240 pixel

Dimensions = 6.9” x 4.4” x 1.4” (175 x 112 x 36 mm)

Weight = 9.3 oz. (263 g)

Audio = 1 Speaker

Keyboard = 9 keys

SOFTWARE

• Periodic software updates via Internet (INCLUDED)

• Instrument update via USB interface

COVERED SYSTEMS

• Ignition

• Injection (blink codes)

• Injection (display codes)

• Injection

• Immobilizer

• ABS

• Service

• Instrument panel

• Body computer

• Injection adjustment

• Transmission

• Radio

• Parking

• EPT

• Suspensions

• EPS

• RDC

• Handlebar controls

• Electric traction

• Traction control

• DPS

• ACS

• TCM

• WPM

COMMUNICATION PROTOCOLS

• ISO 14230-4 (KWP 2000)

• ISO 9141-2

• SAE J1850 41.6 Kbps PWM

• SAE J1850 10.4 Kbps VPW

• ISO 15765-4 (CAN)

• Manufacturers Protocols
